<b>Fingerprint</b><br />Scanner <b>F1</b>

Fingerprint
Scanner F1

Small size - Big solution.

Space-saving dimensions

Space-saving dimensions

Small footprint of only 31 mm x 53 mm x 68 mm saves valuable space in plenty of settings.

Excellent Quality

Excellent Quality

The device ensures excellent results for both wet and dry fingerprints.

Ease of use

Ease of use

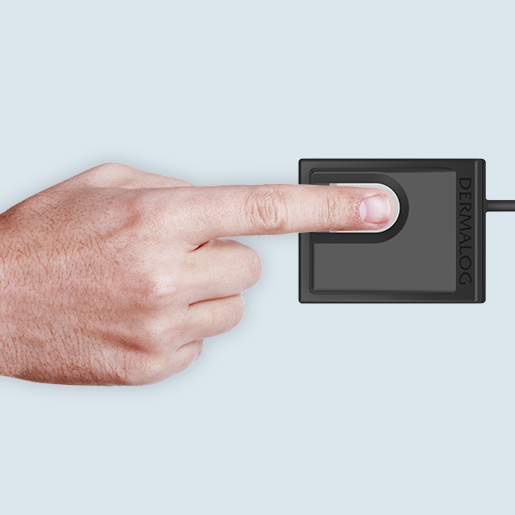

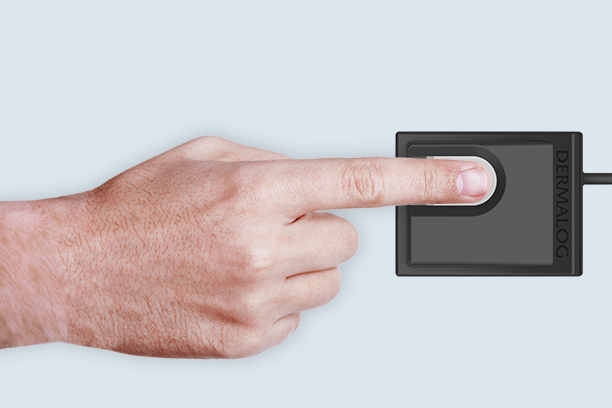

Self-explanatory design leads users to put a finger on the scanner in a correct way without needing assistance.

DERMALOG F1 – One of the World’s smallest optical Fingerprint Scanners.

Its compliance to international standards make the F1 suitable for a wide range of biometric documents and application possibilities - capturing fingerprints for ePassports, ID Cards and verification-processes within the blink of an eye. The self-explanatory DERMALOG solution meets international standards defined for biometric workflows.

F1 Product Features

  1. Excellent quality for both wet and dry fingerprints
  2. Robust against disturbing light sources
  3. Space-saving dimensions of 31 mm x 53 mm x 68 mm

Numerous DERMALOG Applications for F1

Biometric Banking

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Show more
Election Systems

Election Systems

Preventing duplicate registrations and supporting governments to conduct efficient and transparent elections.

Show more
Biometric Payment

Biometric Payment

Server-driven biometric matching enables a full replacement of PIN numbers and passwords.

Show more
Biometric Documents

Biometric Documents

Integrated biometrics provide maximum security and authenticity for a wide range of documents.

Show more

F1 Technical Data

  • Fingerprint scanning window size

    25 mm x 18 mm

  • Optical scanning area

    24.4 mm x 16.3 mm

  • Image resolution

    480 x 320 pixels, 500 dpi

  • Bit Depth

    8 bit, 256 gray levels

  • Raw fingerprint image file size
    WSQ compressed

    Approx. 160 kByte
    Approx. 18 kByte

  • Interface

    USB 2.0 high-speed with 1.8 meters standard USB cable

  • Dimensions (H x W x D)

    31 mm x 53 mm x 68 mm

  • Weight

    122g

  • Operating temperature

    -10 to +55 °C (14 to 131 °F) at a humidity of 20 - 75 % non-condensing

  • Storage temperature

    -10 to +60 °C (14 to 140 °F) at a humidity of 10 – 90 % non-condensing

  • Light source

    Infrared light-emitting diode (LED)

  • Supply

    + 5 V ± 0.5 V (USB-powered)

  • Power consumption

    230 mA

  • Certificatios

    CE, FBI-PIV, FCC Part 15 Subpart B Class A
