<b>Fingerprint</b>
Scanner <b>LF10</b>

Fingerprint
Scanner LF10

Unchallenged speed, reliability and image quality.

Ease of use

Ease of use

Self-explanatory design leads users to put a finger on the scanner in a correct way without needing assistance.

Certified image quality

Certified image quality

Certified by the German Federal Office for Information Security according to the “BSI-TR-03104“ standard.

High speed

High speed

It's advanced optical system takes plain fingerprint images in just a second.

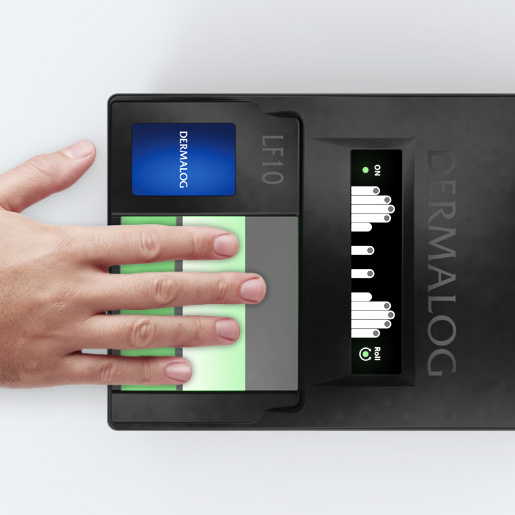

High-quality Fingerprint and Signature Images with DERMALOG's LF10.

The DERMALOG's LF10 is the first tenprint and rolled fingerprint scanner providing liveness detection. Using its large scanning area the LF10 is optimized for creating high quality images. Its advanced optical system captures plain fingerprint images and rolled fingerprints within a second. From border management to voters registration or law enforcement - a complete biometric solution.

LF10 Product Features

  1. Dimensions of 163 mm x 120 mm x 238 mm
  2. Excellent results for dry fingerprints
  3. Robust against disturbing light sources

Numerous DERMALOG Applications for LF10

Border Control

Border Control

The most advanced solution with latest technologies for border control fully integrated.

Show more
Police AFIS

Police AFIS

State of the art solution providing comprehensive support for forensic investigation and law enforcement.

Show more
Biometric Banking

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Show more
Biometric Documents

Biometric Documents

Integrated biometrics provide maximum security and authenticity for a wide range of documents.

Show more

LF10 Technical Data

  • Fingerprint scanning window size

    86 mm x 84 mm

  • Optical scanning area

    81 mm x 81 mm

  • Image resolution

    1600 x1600 pixels, 500 dpi

  • Bit Depth

    8 bit, 256 gray levels

  • Raw fingerprint image file size
    WSQ compressed

    Approx. 2.5 MB
    Approx. 0.4 MB

  • Interface

    USB 2.0 high-speed with 1.8 meters standard USB cable

  • Dimensions (H x W x D)

    120 mm x 163 mm x 238 mm

  • Weight

    2.3 kg

  • Operating temperature

    0°C to 50°C at a humidity of 5 - 95% non-condensing

  • Storage temperature

    0°C to 50°C at a humidity of 5 - 95% non-condensing

  • Light source

    Infrared light-emitting diodes (LED)

  • Supply

    external AC adapter with 1.8 m cable, 100 - 240V, 50/ 60Hz, 0.6A

  • Certificatios

    CE, BSI-TR-03104, FBI-EBTF/F
