<b>Fingerprint</b>
Scanner <b>ZF1+</b>

Fingerprint
Scanner ZF1+

Verifying identity with match-on-card feature.

Ease of use

Ease of use

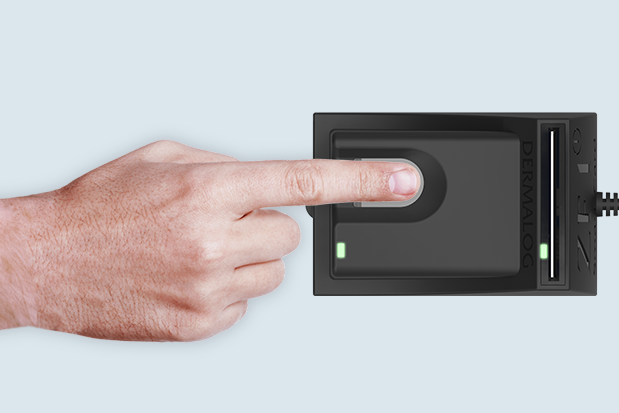

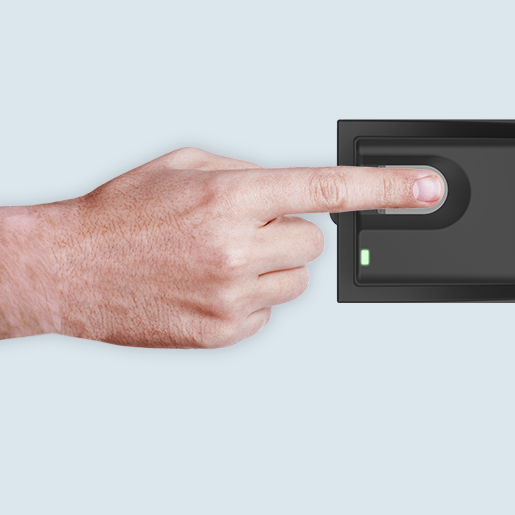

Self-explanatory design leads users to put a finger on the scanner in a correct way without needing assistance.

Excellent Quality

Excellent Quality

The device ensures excellent results for both wet and dry fingerprints.

High speed

High speed

It's advanced optical system takes plain fingerprint images in just a second.

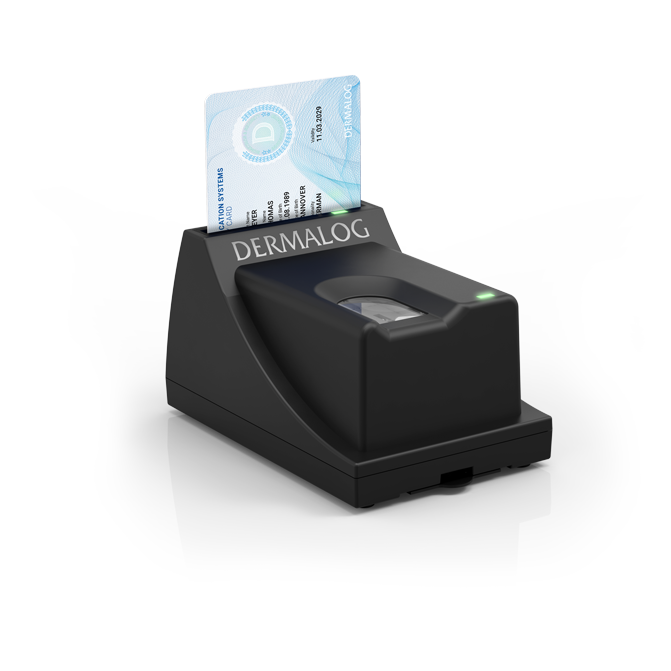

ZF1+ Smart Card Reader – verifying Identity by Fingerprint and MCU-based Card.

DERMALOG's ZF1+ Smart Card Reader extends the outstanding qualities of DERMALOG's ZF1 fingerprint scanner – combining a space-saving design and easy handling. The selfexplanatory ZF1+ guides users to place their finger on the scanner in the correct position automatically. Furthermore, the ZF1+ Smart Card Reader recognizes and captures wet and dry fingerprints flawlessly.

ZF1+ Product Features

  1. Supports all MCU-based cards (Micro Controller Unit)
  2. Excellent quality for both wet and dry fingerprints
  3. Robust against disturbing light sources

Numerous DERMALOG Applications for ZF1+

Biometric Banking

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Show more
Election Systems

Election Systems

Preventing duplicate registrations and supporting governments to conduct efficient and transparent elections.

Show more
Biometric Payment

Biometric Payment

Server-driven biometric matching enables a full replacement of PIN numbers and passwords.

Show more
Biometric Documents

Biometric Documents

Integrated biometrics provide maximum security and authenticity for a wide range of documents.

Show more

ZF1+ Technical Data

  • Fingerprint scanning window size

    25 mm x 18 mm

  • Optical scanning area

    24.4 mm x 16.3 mm

  • Image resolution

    480 x 320 pixels, 500 dpi

  • Bit Depth

    8 bit, 256 gray levels

  • Raw fingerprint image file size
    WSQ compressed

    Approx. 160 kByte
    Approx. 18 kByte

  • Interface

    USB 2.0 high-speed with 1.8 meters standard USB cable

  • Dimensions (H x W x D)

    60 mm x 83 mm x 49 mm

  • Weight

    166 g

  • Operating temperature

    -10 to +55 °C (14 to 131 °F) at a humidity of 20 - 75 % non-condensing

  • Storage temperature

    -10 to +60 °C (14 to 140 °F) at a humidity of 10 – 90 % non-condensing

  • Light source

    Infrared light-emitting diodes (LED)

  • Supply

    DC 4.5 – 5.5V / 200mA (USB powered)

  • Certificatios

    CE, BSI-TR-03104, FBI-PIV, FCC Part 15 Subpart B Class A

  • Standard/ Certifications

    ISO7816-1/2/3, PC/SC, EMV2000, CCID, WHQL

  • Supported card types

    5V, 3V, and 1.8V smart cards

  • Supported protocols

    T=0, T=1
