<b>Fingerprint</b>
Scanner <b>ZF1</b>

Fingerprint
Scanner ZF1

Providing security, efficient and easy to operate.

Ease of use

Ease of use

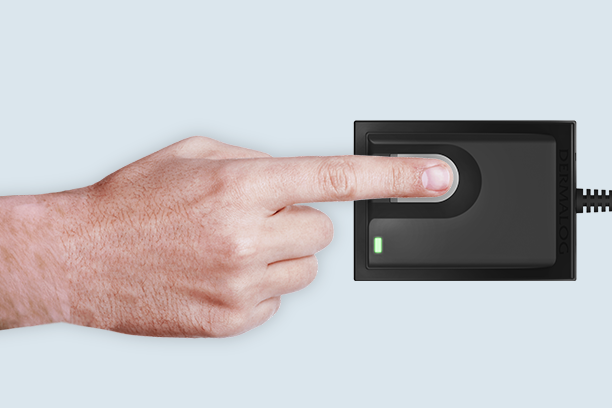

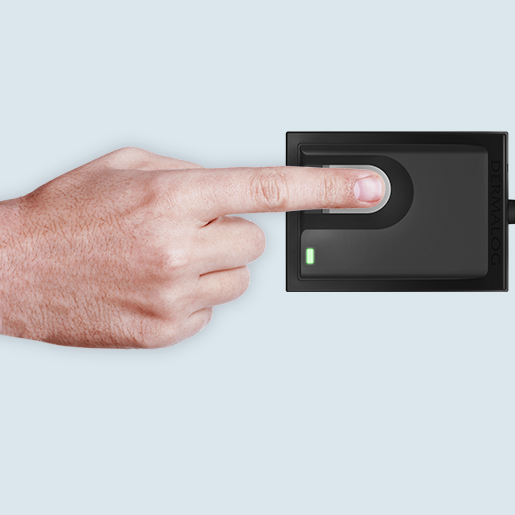

Self-explanatory design leads users to put a finger on the scanner in a correct way without needing assistance.

Excellent Quality

Excellent Quality

The device ensures excellent results for both wet and dry fingerprints.

High speed

High speed

It's advanced optical system takes plain fingerprint images in just a second.

The DERMALOG ZF1 – fingerprint biometrics whenever and wherever needed.

The ZF1 captures fingerprints for ePassports, ID cards and can be used for enrollment, authentication and identification in governmental, commercial and industrial environments. Its variety of application sectors makes the ZF1 scanner the everyday solution for biometric business.

ZF1 Product Features

  1. Excellent quality for both wet and dry fingerprints
  2. Robust against disturbing light sources
  3. High quality fingerprint images - no reference images required

Numerous DERMALOG Applications for ZF1

Police AFIS

Police AFIS

State of the art solution providing comprehensive support for forensic investigation and law enforcement.

Show more
Biometric Banking

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Show more
Election Systems

Election Systems

Preventing duplicate registrations and supporting governments to conduct efficient and transparent elections.

Show more
Biometric Payment

Biometric Payment

Server-driven biometric matching enables a full replacement of PIN numbers and passwords.

Show more

ZF1 Technical Data

  • Fingerprint scanning window size

    25 mm x 18 mm

  • Optical scanning area

    24.4 mm x 16.3 mm

  • Image resolution

    480 x 320 pixels, 500 dpi

  • Bit Depth

    8 bit, 256 gray levels

  • Raw fingerprint image file size
    WSQ compressed

    Approx. 160 kByte
    Approx. 18 kByte

  • Interface

    USB 2.0 high-speed with 1.8 meters standard USB cable

  • Dimensions (H x W x D)

    60 mm x 83 mm x 49 mm

  • Weight

    166 g

  • Operating temperature

    -10 to +55 °C (14 to 131 °F) at a humidity of 20 - 75 % non-condensing

  • Storage temperature

    -10 to +60 °C (14 to 140 °F) at a humidity of 10 – 90 % non-condensing

  • Light source

    Infrared light-emitting diodes (LED)

  • Supply

    DC 4.5 – 5.5V / 200mA (USB powered)

  • Certifications

    CE, BSI-TR-03104, FBI-PIV, FCC Part 15 Subpart B Class A

Downloads

Brochure

Brochure

Download the latest brochure here
