<b>Fingerprint</b>
Scanner <b>ZF10</b>

Fingerprint
Scanner ZF10

Best-value fingerprint identification.

Space-saving dimensions

Space-saving dimensions

Small footprint of only 6 inches saves valuable space in plenty of settings.

Ease of use

Ease of use

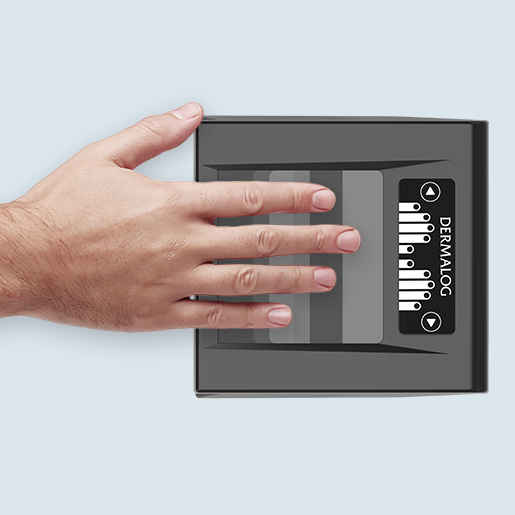

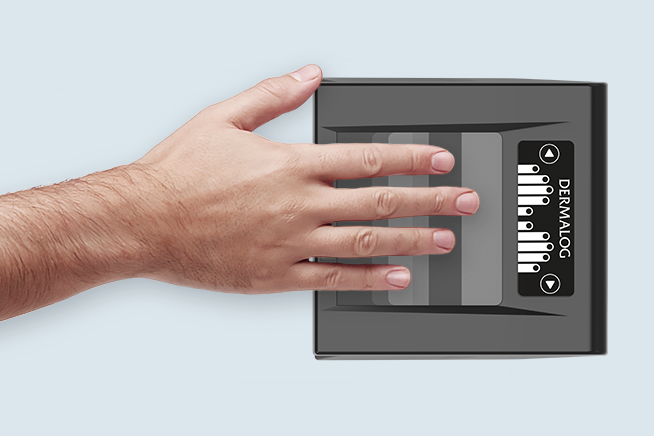

Self-explanatory design leads users to put a finger on the scanner in a correct way without needing assistance.

High speed

High speed

It's advanced optical system takes plain fingerprint images in just a second.

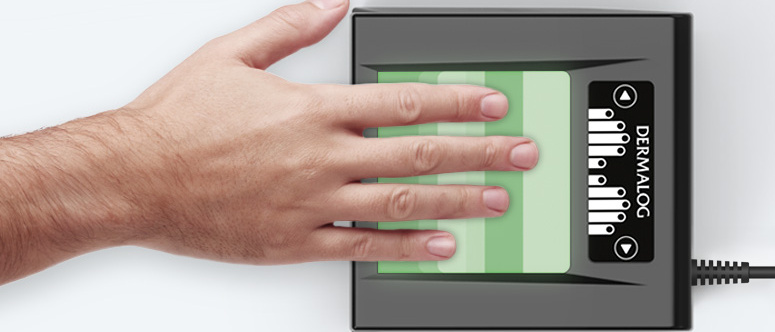

DERMALOG's ZF10 – unchallenged image quality.

The ZF10 is suitable for use in various environments and applications including border control, electronic ID and passport issuing as well as voter registration and verification. Moreover it can be used for security documents, such as visa. A large scanning window assures easy to process images. Latest optics guarantee the best possible image quality for plain ten-prints and single prints as well as for rolled fingerprints.

ZF10 Product Features

  1. Dimensions of 152 mm x 152,1 mm x 145,6 mm (6 inch)
  2. Excellent quality for both moist and dry fingerprints
  3. Robust against disturbing light sources

Numerous DERMALOG Applications for ZF10

Border Control

Border Control

The most advanced solution with latest technologies for border control fully integrated.

Show more
Police AFIS

Police AFIS

State of the art solution providing comprehensive support for forensic investigation and law enforcement.

Show more
Biometric Banking

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Show more

ZF10 Technical Data

  • Fingerprint scanning window size

    89 mm x 85 mm

  • Optical scanning area

    81.3 mm x 76.2 mm

  • Image resolution

    1600 x 1500 pixels, 500 dpi

  • Bit Depth

    8 bit, 256 gray levels

  • Raw fingerprint image file size
    WSQ compressed

    Approx. 2.4 MB
    Approx. 0.4 MB

  • Interface

    USB 2.0 high-speed with 1.8 meters standard USB cable

  • Dimensions (H x W x D)

    152 mm x 152 mm x 146 mm

  • Weight

    2.2 kg

  • Operating temperature

    0°C to 50°C at a humidity of 5 - 95% non-condensing

  • Storage temperature

    0°C to 50°C at a humidity of 5 - 95% non-condensing

  • Light source

    Orange

  • Supply

    5 V DC (+/- 0.25 V), 400mA (USB-powered)

  • Certifications

    CE, FBI Appendix F
