<b>Fingerprint</b>
Scanner <b>ZF2</b>

Fingerprint
Scanner ZF2

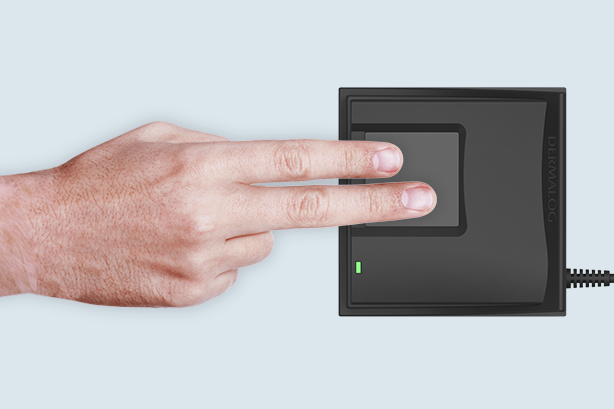

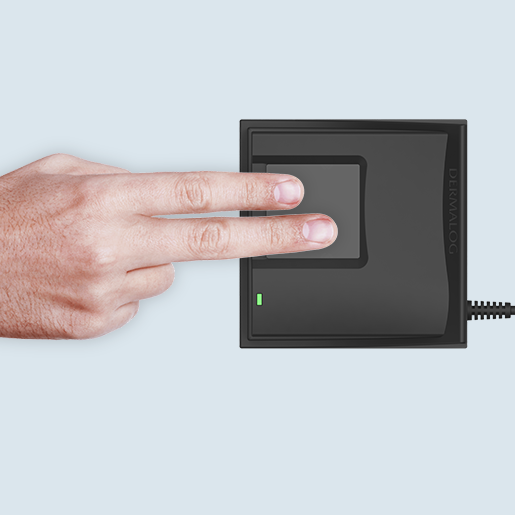

Capturing single rolled or
two flat fingerprints.

Ease of use

Ease of use

Self-explanatory design leads users to put a finger on the scanner in a correct way without needing assistance.

Certified image quality

Certified image quality

High quality images meet the criteria of FBI Appendix F standard.

High frame rates

High frame rates

Up to 15 frames per second in rolled and slap fingerprint scanning.

ZF2 – the remarkably compact optical fingerprint scanner.

The DERMALOG's ZF2 scanner meets high requirements regarding applications for law enforcement and forensics. It supports banks performing transactions and enables biometric security at POS. As a key characteristic the ZF2 combines capturing a single rolled fingerprint or two flat fingerprints on one surface.

ZF2 Product Features

  1. Excellent image data quality for dry fingerprints
  2. High quality fingerprint images - no reference images required
  3. Liveness detection to prevent attacks using fake fingers (optional purchase)

Numerous DERMALOG Applications for ZF2

Police AFIS

Police AFIS

State of the art solution providing comprehensive support for forensic investigation and law enforcement.

Show more
Election Systems

Election Systems

Preventing duplicate registrations and supporting governments to conduct efficient and transparent elections.

Show more
Biometric Payment

Biometric Payment

Server-driven biometric matching enables a full replacement of PIN numbers and passwords.

Show more

ZF2 Technical Data

  • Fingerprint scanning window size

    43 mm x 43 mm

  • Optical scanning area

    40,6 mm x 38,1 mm

  • Image resolution

    800 x 750 pixels, 500 dpi

  • Bit Depth

    8 bit, 256 gray levels

  • Raw fingerprint image file size
    WSQ compressed

    Approx. 600 kByte
    Approx. 70 kByte

  • Interface

    USB 2.0 high-speed with 1.8 meters standard USB cable

  • Dimensions (H x W x D)

    53 mm x 105 mm x 105 mm

  • Weight

    463 g

  • Operating temperature

    -10 to +55 °C (14 to 131 °F) at a humidity of 20 - 75 % non-condensing

  • Storage temperature

    -10 to +60 °C (14 to 140 °F) at a humidity of 10 – 90 % non-condensing

  • Light source

    Infrared light-emitting diodes (LED)

  • Supply

    DC 4.5 – 5.5 V (USB-powered)

  • Power consumption

    5 V / 300 mA

  • Certificates

    CE, FBI-PIV, FBI-EBTF/F, FCC Part 15 Subpart B Class B
