Weighing less than 1 kg and measuring 30 mm × 178 mm × 220 mm, the LIVETOUCH PALM is one of the lightest and smallest palm scanners.
Real-Time User Guidance
An integrated color display guides the user through the scanning process, detects scanning errors in real time and displays correction aids.
Field-Ready Durability
Equipped with a metal housing and protection class IP 65, the device is ideally equipped for stationary or mobile use in everyday police work.
Field-Ready Palm & Fingerprint Scanner

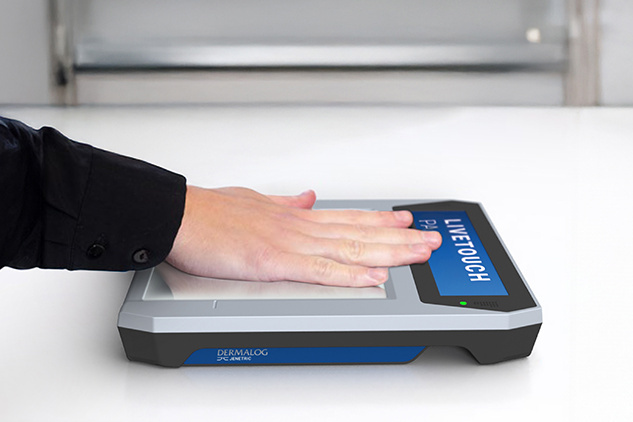

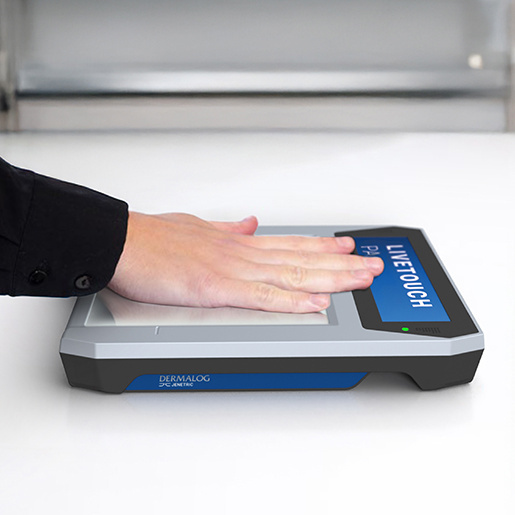

The DERMALOG LIVETOUCH PALM is a compact, FBI-certified palm and fingerprint scanner for mobile biometric enrollment. Weighing only 995 g, it combines palm print, flat fingerprint, rolled fingerprint, document, and signature capture in one portable device. Its integrated color display and audio guidance support users throughout the capture process, while real-time feedback helps reduce scanning errors and improve image quality.
With a scratch-resistant surface, rugged IP65-rated housing, and flexible USB-C connectivity, the LIVETOUCH PALM is ideal for field operations, law enforcement, border control, and civil ID applications. An optional antimicrobial coating supports hygienic use in high-frequency public environments.
Product Features
Compact palm scanner with a weight of only 995 g and dimensions of 30 mm × 178 mm × 220 mm
Capture of upper, lower, and writer’s palm prints as well as flat and rolled fingerprints
Direct document capture for formats up to 127 mm × 127 mm
Signature capture via integrated touchscreen
Color display and speaker for real-time user guidance
Rugged metal housing with IP65 protection rating
USB-C connection for power supply and data transmission
FBI EBTS Appendix F certification for palm print, tenprint, and ID flats as well as Mobile ID FAP 60
Numerous DERMALOG Applications
Police AFIS
State of the art solution providing comprehensive support for forensic investigation and law enforcement.
Biometric Documents
Integrated biometrics provide maximum security and authenticity for a wide range of documents.
Border Control
The most advanced solution with latest technologies for border control fully integrated.
Technical Specifications
Sensor Type
Optical TFT sensor
Platen Size
128 mm × 128 mm (5.04” × 5.04”)
Capture Area
127 mm × 127 mm (5.0” × 5.0”)
Capture Modes
Upper, lower and writer’s palm prints, flat (4-4-2) and rolled fingerprints
