Document Reader XF3

For reliable border control.

Space-Saving Dimensions

Small footprint saves valuable space in plenty of settings.

Excellent Quality

The device ensures excellent results.

High Speed

Its advanced optical system reads passports in just a second.

Multi-Document Reading Including RFID

The DERAMLOG XF3 is intended for the automatic reading and authenticity verification of passports, ID cards, visas and further documents. It provides the capability of text data recognition, reading barcodes, and RFID tags. Using infrared, UV-Light and MRZ recognition, the XF3 professionalizes Border Control business. Its high reliability makes the XF3 a popular device for many civil and security installations like Border Control, immigration services, financial institutions or ticket offices.

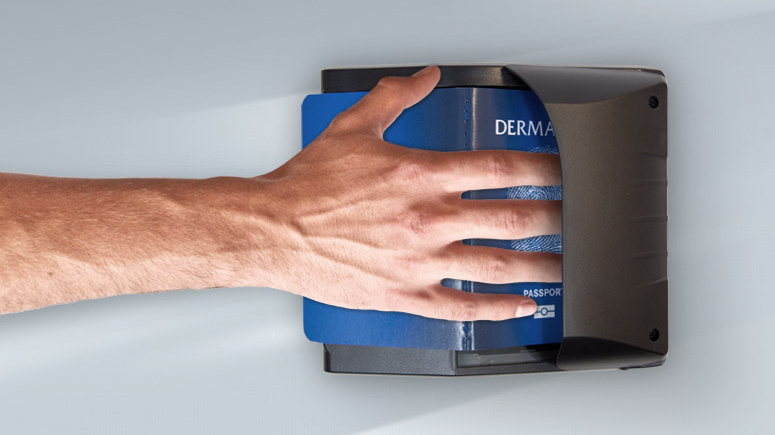

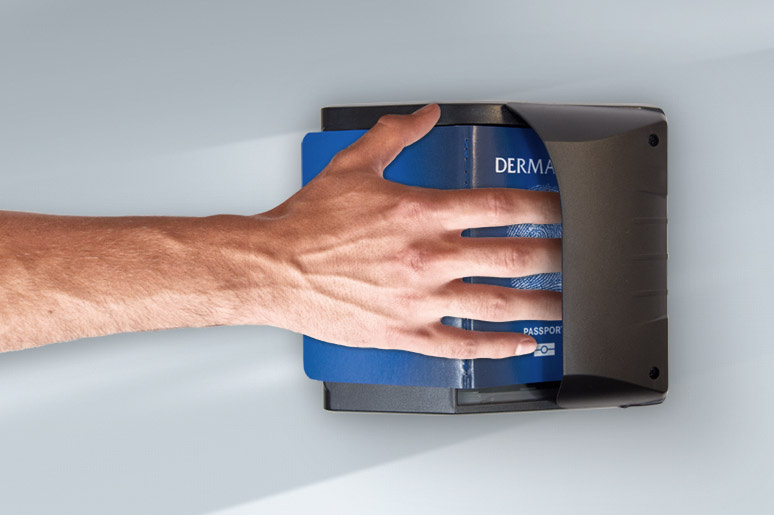

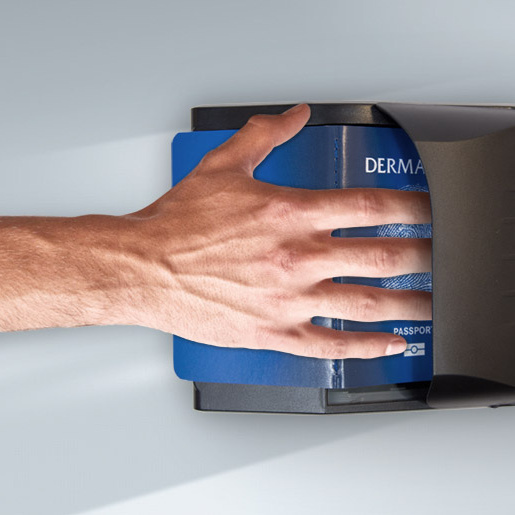

You can see a passport scan on DERMALOG´s Document Reader XF3.You can see a passport scan on DERMALOG´s Document Reader XF3.

XF3 Product Features

  1. Authenticity verifcation
  2. Automated document detection
  3. Glare suppression for infrared light and white light

Numerous DERMALOG Applications for XF3

Border Control

The most advanced solution with latest technologies for border control fully integrated.

Show more

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Show more

Biometric Documents

Integrated biometrics provide maximum security and authenticity for a wide range of documents.

Show more

XF3 Technical Data

  • Scanning window size

    88 mm x 128 mm: full passport page

  • Image resolution

    (2048x1536) 400 PPI or (2592x1944) 500 PPI

  • Bit Depth

    24 bit

  • Dimensions (H x W x D)

    99 mm x 160 mm x 179 mm

  • Weight

    0.82 kg

  • Light source

    White, Infrared, Ultraviolet, Coaxial white

  • Supply

    USB-port 5V

  • Supported standards

    ISO 14443: type A and B (RFID), ICAO 9303, BSI TR-03105 Part 5.1, ISO 7501, 1831, 1073-2 (MRZ), 1D: Codabar, Code39 (+extended), Code93, Code128, EAN-8, EAN-13, IATA 2 of 5 (Airline), Interleaved 2 of 5 (ITF), Matrix 2 of 5, STF (Industrial), UPC-A, UPC-E and 2D: PDF417, Aztec Code, QR Code (Barcode)
