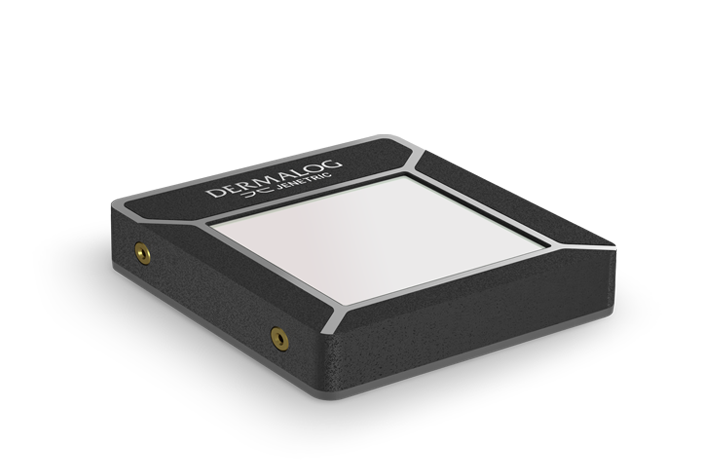

LIVETOUCH <b>Duo</b>

LIVETOUCH Duo

High-performance dual fingerprint scanner

Highly Compact Design

Lightweight and space-saving design enables easy integration into portable systems and mobile enrollment kits.

Certified Image Quality

FBI-certified fingerprint images ensure accurate matching and compliance with international standards.

Rugged Protection

Scratch-resistant surface and IP65 protection ensure consistent performance even in wet, dusty, and high-usage conditions.

Compact Two-Fingerprint Scanner for Fast and Reliable Enrollment

The LIVETOUCH DUO is a highly compact FAP 45 dual fingerprint scanner for mobile enrollment and identification. It captures flat and rolled fingerprints with certified image quality, ensuring precise and reliable results. Designed for portability, it combines minimal size, low power consumption, and IP65 protection for use in demanding environments.


LIVETOUCH DUO Product Features

  1. High-resolution fingerprint images for accurate identification
  2. Captures single, dual, and rolled fingerprints for flexible enrollment
  3. FBI-certified image quality for secure biometric applications


Numerous Applications for LIVETOUCH DUO

Border Control

Enable fast and reliable identity verification at borders with high-quality fingerprint capture and efficient enrollment processes.

Show more

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Show more

Biometric Documents

Ensure smooth and user-friendly enrollment for secure and efficient ID card issuance.

Show more

Voter Registration

Ensure secure voter registration with precise fingerprint capture and efficient biometric enrollment workflows.

show more

LIVETOUCH DUO Technical Data

  • Capture Modes

    Flat (1/2) and rolled fingerprints

  • Image Resolution

    500 dpi

  • Scan Area (W × H)

    40 mm × 38 mm (1.6” × 1.5”)

  • Image Quality Certification

    FBI EBTS Appendix F, Mobile ID FAP 45

  • Ingress Protection

    IP65

  • Infection Prevention (optional)

    Antimicrobial coating (AMC) tested for abrasion and washability

  • Scratch Restistance

    Glass protection layer against scratches tested for hardness (DIN EN ISO 6507-1:2018-4:2018)and for abrasion (DIN 55654:2015-08)

  • Operating Temperature

    −10 °C to +55 °C (14 °F to 131 °F)

  • Dimensions (H x W x D)

    13.1 mm × 61.1 mm × 65 mm (0.52” × 2.41” × 2.56”)

  • Weight

    60 g (0.14 lbs)

  • Scanner Interface

    USB 2.0 Type-C

  • Power Supply

    Through USB 2.0 interface (5 V, 270 mA)

  • Operating System

    Windows 10/11 (all 32- and 64-bit), Android 7.0 Nougat and later

  • Certifications

    FBI, WHQL, CE, FCC, RoHS
