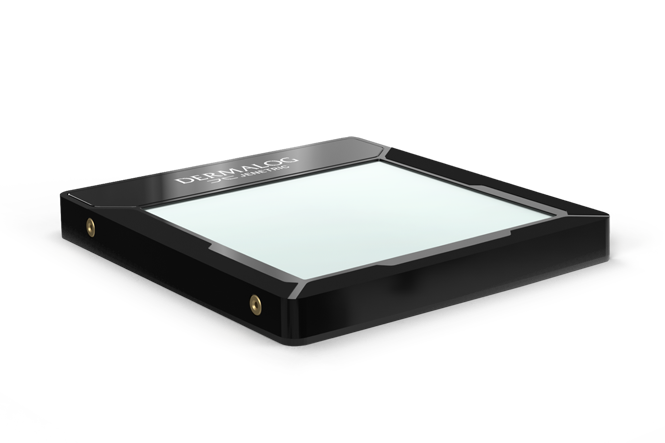

LIVETOUCH QUATTRO <b>Compact</b>

LIVETOUCH QUATTRO Compact

Tenprint scanner for seamless integration

Design for Portable Use

Ultra-compact fingerprint scanner for mobile biometric enrollment and seamless integration.

Certified Image Quality

FBI and BSI certified fingerprint images for reliable identification and compliance.

Easy Document Capture

Scan ID cards, driver’s licenses, and barcodes quickly in one device.

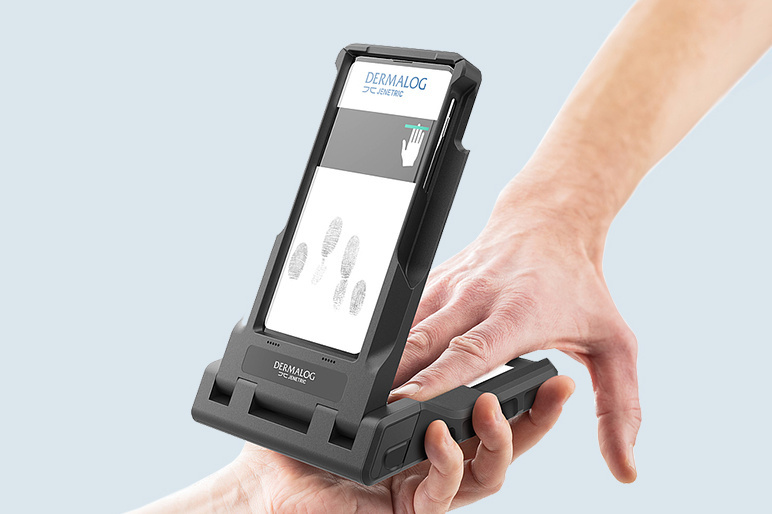

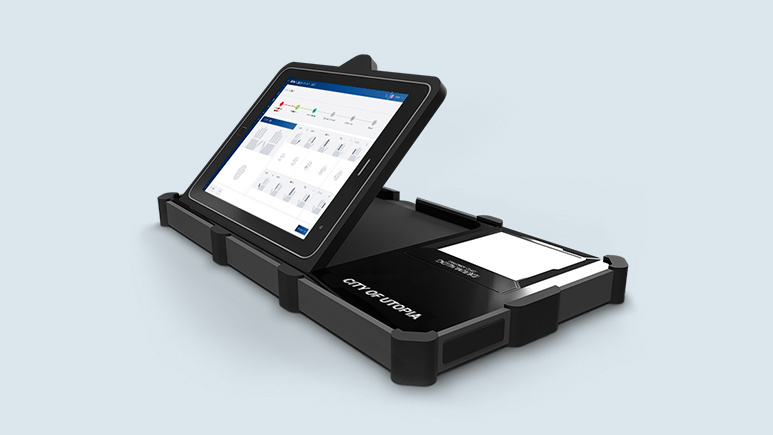

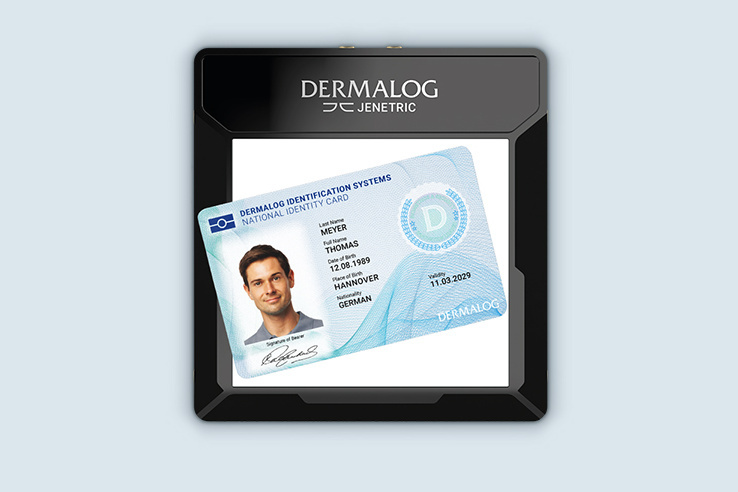

LIVETOUCH QUATTRO Compact fingerprint scanner scanning documentsMobile device with a LIVETOUCH QUATTRO Compact fingerprint scanner Mobile handheld with a LIVETOUCH QUATTRO Compact fingerprint scanner

Tenprint Scanner for Seamless Integration

The second generation of our LIVETOUCH QUATTRO Compact combines the benefits of compact-size scanner with the ability to capture fingerprints and documents. Designed for minimal power consumption, the solution is ideal for integration into portable enrollment systems. Furthermore, the scanner meets the high requirements of the Federal Office for Information Security (BSI) and the Federal Bureau of Investigation (FBI).

Contact Our Biometric Experts

LIVETOUCH QUATTRO Compact Features

  1. High-resolution images at 500 dpi
  2. Compact dimensions of 12.1 mm × 112 mm × 118.4 mm
  3. Captures flat fingerprints (4-4-2) and rolled fingerprints

Numerous Applications

Border Control

The most advanced solution with latest technologies for border control fully integrated.

Show more

Police AFIS

State of the art solution providing comprehensive support for forensic investigation and law enforcement.

Show more

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Show more

Biometric Documents

Integrated biometrics provide maximum security and authenticity for a wide range of documents.

Show more

Technical Data

  • Capture Modes

    Flat (4-2-2) and rolled fingerprints, documents and barcodes in ID-1 format

  • Image Resolution

    500 dpi

  • Scan Area (W × H)

    86 mm × 76.2 mm (3.4” × 3.0”)

  • Image Quality Certification

    FBI EBTS Appendix F, BSI TR-03121, Tenprint and Mobile ID FAP 60

  • Ingress Protection

    IP65

  • Infection Prevention (optional)

    Antimicrobial coating (AMC) tested for abrasion and washability

  • Scratch Resistance

    Glass protection layer against scratches tested for hardness (DIN EN ISO 6507-1:2018-4:2018) and for abrasion (DIN 55654:2015-08)

  • Operating Temperature

    −10 °C to +55 °C (14 °F to 131 °F )

  • Dimensions (H × W × D)

    12.1 mm × 112 mm × 118.4 mm (0.48” × 4.41” × 4.66”)

  • Weight

    133 g (0.29 lbs)

  • Scanner Interface

    USB 2.0 Type-C

  • Power Supply

    USB 2.0 interface (5 V, 500 mA)

  • Power Consumption

    Max. 300 mA

  • Operating System

    Windows 10/11 (all 32- and 64-bit), Android 7.0 Nougat and later

  • Certifications

    FBI, BSI, WHQL, CE, FCC, UL, RoHS
