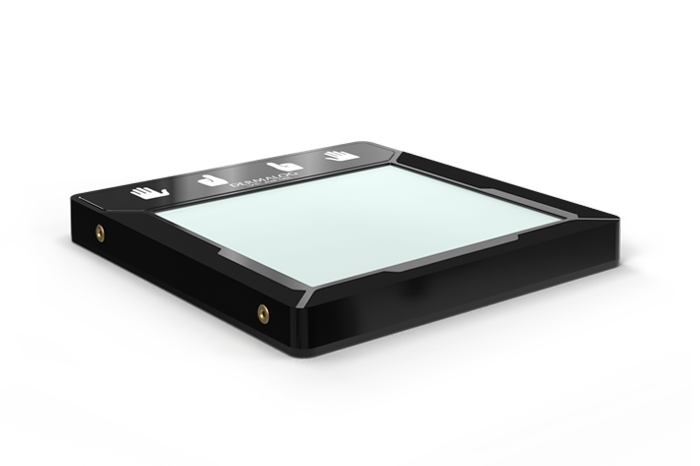

LIVETOUCH QUATTRO <b>Compact Up</b>

LIVETOUCH QUATTRO Compact Up

Compact tenprint scanner with integrated user guidance

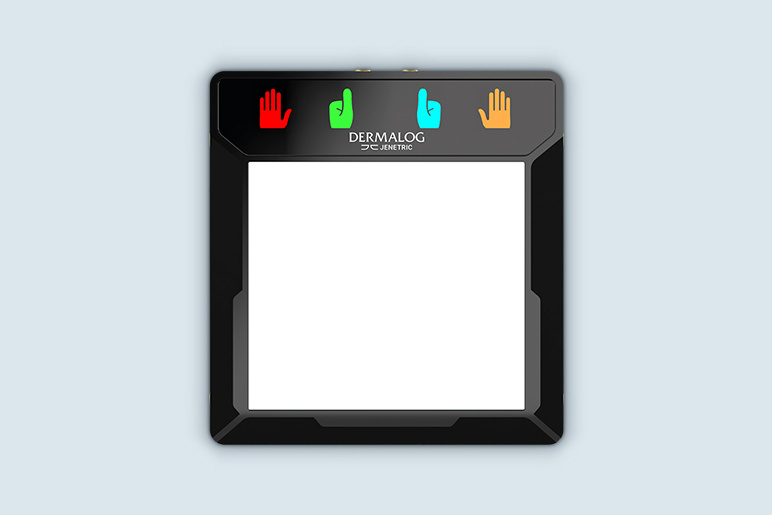

Integrated User Guidance

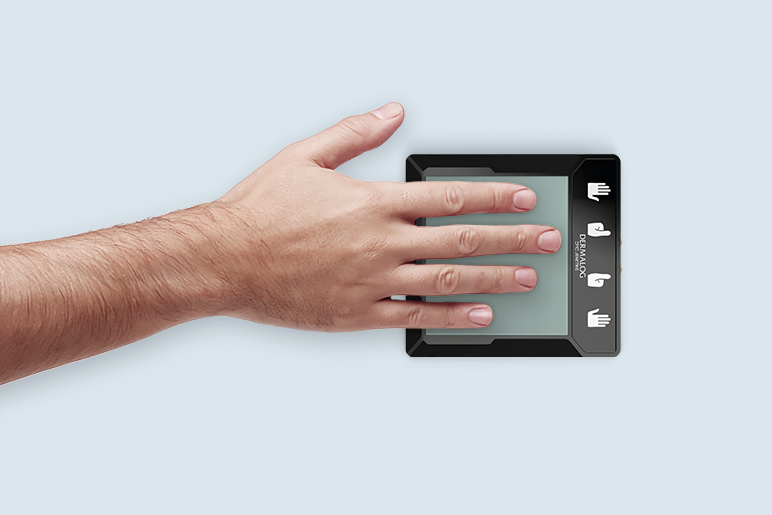

Guided fingerprint capture with visual indicators for faster and error-free enrollment.

Certified Image Quality

FBI and BSI certified fingerprint images for reliable identification.

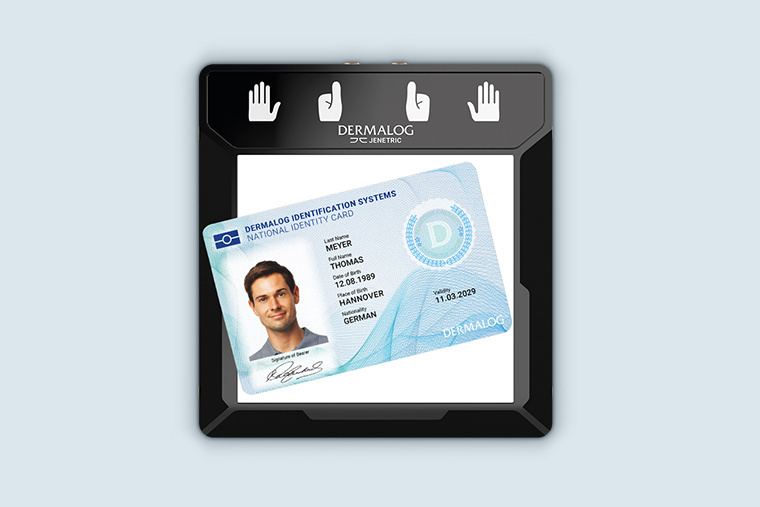

Easy Document Capture

Scan ID cards, driver’s licenses, and barcodes quickly in one device.

High-Performance Fingerprint Scanner with Integrated User Guidance

The LIVETOUCH QUATTRO Compact Up is a high-performance tenprint fingerprint scanner for mobile biometric enrollment and identification. It enables the capture of fingerprints and documents in one compact device.

With integrated user guidance, the scanner simplifies enrollment and ensures fast, accurate fingerprint capture. Certified image quality guarantees reliable identification results.

Designed for portability and durability, the device integrates easily into a wide range of applications.

Contact Our Biometric Experts

LIVETOUCH QUATTRO Compact Up Features

  1. Intuitive user guidance with LED indicators for fast and error-free enrollment
  2. High-resolution fingerprint images at 500 dpi for precise identification

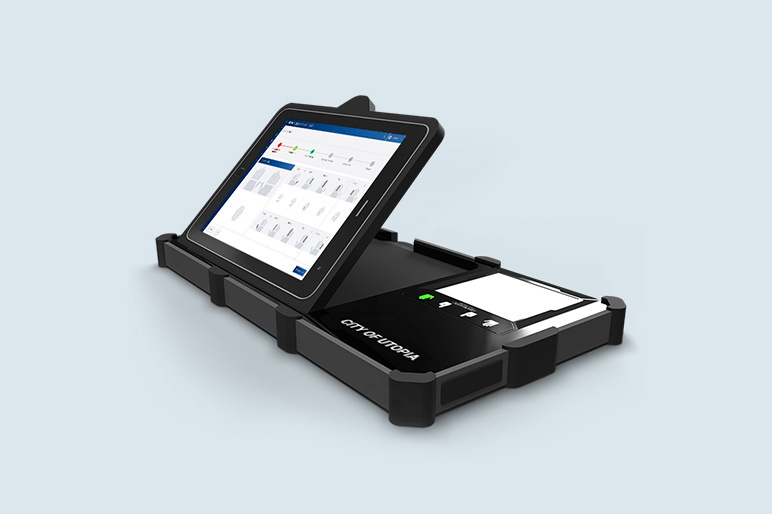

  3. Compact design for easy integration into mobile systems

Numerous Applications

Border Control

Enable fast and reliable identity verification at borders with high-quality fingerprint capture.

Show more

Police AFIS

State of the art solution providing comprehensive support for forensic investigation and law enforcement.

Show more

Biometric Banking

Streamline KYC processes with secure and efficient biometric enrollment.

Show more

Biometric Documents

Ensure secure ID enrollment with precise biometric capture.

Show more

Technical Data

  • Capture Modes

    Flat (4-2-2) and rolled fingerprints, documents and barcodes in ID-1 format

  • Image Resolution

    500 dpi

  • Scan Area (W × H)

    86 mm × 76.2 mm (3.4” × 3.0”)

  • Image Quality Certification

    FBI EBTS Appendix F, BSI TR-03121, Tenprint and Mobile ID FAP 60

  • User Guidance

    Integrated set of colored LEDs and pictogams for user guidance

  • Ingress Protection

    IP65

  • Infection Prevention (optional)

    Antimicrobial coating (AMC) tested for abrasion and washability

  • Scratch Resistance

    Glass protection layer against scratches tested for hardness (DIN EN ISO 6507-1:2018-4:2018) and for abrasion (DIN 55654:2015-08)

  • Operating Temperature

    −10 °C to +55 °C (14 °F to 131 °F )

  • Dimensions (H x W x D)

    12.1 mm × 112 mm × 118.4 mm (0.48” × 4.41” × 4.66”)

  • Weight

    133 g (0.29 lbs)

  • Scanner Interface

    USB 2.0 Type-C

  • Power Supply

    Through USB 2.0 interface (5 V, 500 mA)

  • Power Consumption

    Max. 300 mA

  • Operating System

    Windows 10/11 (all 32- and 64-bit), Android 7.0 Nougat and later

  • Certifications

    FBI, BSI, WHQL, CE, FCC, UL, RoHS
