<b>Fingerprint</b> Scanner <b>TF60</b>

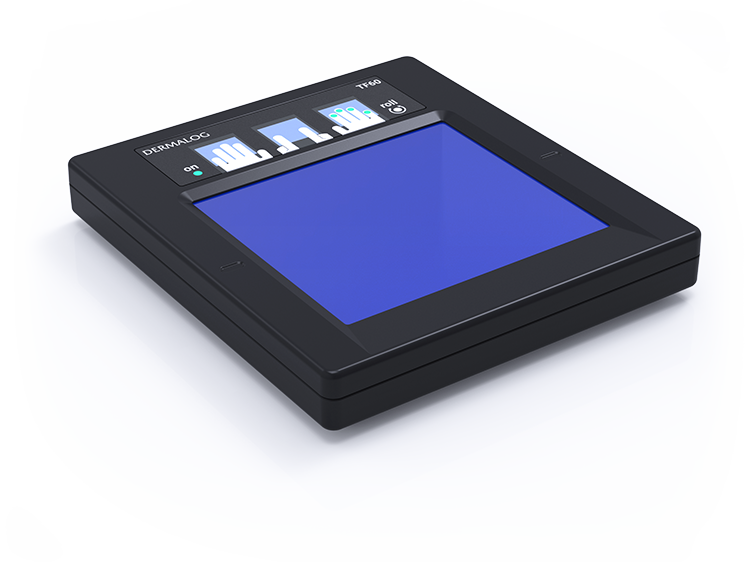

Fingerprint Scanner TF60

Compact tenprint scanner with built-in encryption.


Secure Data Transmission

The TF60 captures fingerprints and automatically encrypts the data for secure transmission to devices such as PCs or notebooks.

Latest Capture Technology

Based on innovative optical TFT sensor technology, the TF60 delivers high-resolution 500 dpi images for the most accurate results.

Compact Dimensions

Fit for Portable Use

With its compact dimensions and a total weight of only 400 g, the TF60 easily integrates into any stationary or portable application.

Maximum Security for Enrollment and Identification Processes

With the TF60, DERMALOG offers an optical TFT scanner, setting new standards in secure data transmission by encrypting captured data automatically before transferring it to any other device. The fingerprint scanner features compact dimensions, low weight and IP65 rating, making it particularly suitable for portable use.

TF60 provides high-resolution images of both flat and rolled fingerprints. DERMALOG's integrated liveness detection technology ensures the highest level of fraud protection for fingerprint recognition.

TF60 Product Features

  1. Hardware security module (HSM) for mutual authentication
  2. Signature and end-to-end encryption of captured data
  3. Ensuring the highest security standards (CC EAL6+)

TF60 Applications

Border Control

The most advanced solution with latest technologies for border control fully integrated.

Show more

Police AFIS

State of the art solution providing comprehensive support for forensic investigation and law enforcement.

Show more

Biometric Banking

Complete biometric solutions for banks - ensuring maximum security and best possible KYC.

Show more

Biometric Documents

Integrated biometrics provide maximum security and authenticity for a wide range of documents.

Show more

TF60 Technical Data

  • Capture Area for Flat Fingerprints (W x H)

    81 mm x 76 mm (3.2" x 3.0")

  • Capture Area for Rolled Fingerprints (W x H)

    81 mm x 38.1 mm (3.2" x 1.5")

  • Image Resolution for Flat Fingerprints

    1600 px x 1500 px at 500 dpi

  • Image Resolution for Rolled Fingerprints

    1600 px x 750 px at 500 dpi

  • Certifications (in progress)

    CE | FBI EFTS/F | BSI-TR-03121

  • User Guidance

    LED indicator for each finger and acoustic feedback

  • Dimensions (H x W x D)

    17.9 mm x 123 mm x 137 mm (0.7" x 4.8" x 5.4")

  • Weight

    400 g (0.9 lb)

  • Operating Temperature

    0 °C to 50 °C (32 °F to 122 °F) at humidity 5 % to 95 %, non-condensing

  • Storage Temperature

    0 to 50 °C (32 °F to 122 °F) at humidity 5 to 95 %, non-condensing

  • Light Source

    Blue background lighting

  • Interface

    USB-C | No external power supply | Encrypted communication | Mutual authentication

  • Power Supply


  • Ingress Protection


  • Operating Systems

    Windows | Linux | Android
